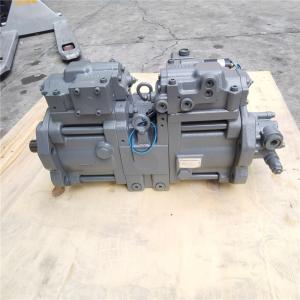

Belparts Excavator Main Pump R160LC-7 R180LC-7 Hydraulic Pump 31N5-10010 31N5-10011 31N5-10030 For Hyundai

  • 1
  • 2
  • 3

Brand Name : Belparts

Model Number : R160LC-7 R180LC-7

Place of Origin : Guangdong, China

MOQ : 1 piece

Price : Negotiable price

Payment Terms : T/T, Paypal and Trade Assurance

Supply Ability : 1000pieces

Delivery Time : 1-5days

Packaging Details : Wooden packing

Product name : Excavator main pump

Machine model : R160LC-7 R180LC-7

Part number : 31N5-10010 31N5-10011 31N5-10030

Brand : Belparts

Contact Now

Belparts excavator main pump R160LC-7 R180LC-7 hydraulic pump 31N5-10010 31N5-10011 31N5-10030 for hyundai


Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:R160LC-7 R180LC-7
Packing Size:84*38*49
Part number: 31N5-10010 31N5-10011 31N5-10030
Pressure:Standard, High Pressure

Specifiions Of Excavator Hydraulic Pump

Product Name Excavator Hydraulic Pump
Brand Belparts
Machine model R160LC-7 R180LC-7
Packing Size 84*38*49
Part number 31N5-10010 31N5-10011 31N5-10030
Pressure Standard, High Pressure

# Part No Part Name Qty. Price request
* 31N5-10010 MAIN PUMP 1  
* 31N5-10011 MAIN PUMP 1  
*-1 @ FUEL INJECTION PIPE & NOZZLE 1  
111 XJBN-00802 SHAFT(F)-DRIVE 1  
113 XJBN-00803 SHAFT(R)-DRIVE 1  
114 XJBN-00430 COUPLING-SPLINE 1  
123 XJBN-00429 BEARING-ROLLER 2  
124 XJBN-00805 BEARING-NEEDLE 2  
127 XJBN-00806 SPACER-BEARING 4  
S141 XJBN-00807 BLOCK-CYLINDER 2  
S151 XJBN-00425 PISTON 18  
S152 XJBN-00424 SHOE 18  
153 XJBN-00808 PLATE-SET 2  
156 XJBN-00422 BUSHING-SPHERICAL 2  
157 XJBN-00421 SPRING-CYLINDER 18  
211 XJBN-00420 PLATE-SHOE 2  
S212 XJBN-00419 PLATE-SWASH 2  
S214 XJBN-00418 BUSHING-TILTING 2  
251 XJBN-00417 SUPPORT 2  
261 XJBN-00809 COVER-FR 1  
271 XJBN-00415 CASING-PUMP 2  
312 XJBN-00414 BLOCK-VALVE 1  
S313 XJBN-00413 PLATE(R)-VALVE 1  
S314 XJBN-00412 PLATE(L)-VALVE 1  
401 XJBN-00411 SCREW 8  
406 XJBN-00410 SCREW 4  
466 XJBN-00356 PLUG 2  
467 XJBN-00409 PLUG 4  
490 XJBN-00032 PLUG 15  
S531 XJBN-00815 PIN-TILTING 2  
532 XJBN-00407 PISTON-SERVO 2  
534 XJBN-00816 STOPPER(L) 2  
535 XJBN-00405 STOPPER(S) 2  
S548 XJBN-00360 PIN-FEED BACK 2  
K702 XJBN-00888 O-RING 2  
K710 XJBN-00402 O-RING 2  
K717 XJBN-00401 O-RING 2  
K719 XJBN-00400 O-RING 2  
K724 XJBN-00361 O-RING 18  
K725 XJBN-00362 O-RING 2  
K728 XJBN-00097 O-RING 4  
K732 XJBN-00820 O-RING 2  
K774 XJBN-00098 SEAL-OIL 1  
K789 XJBN-00398 RING-BACK UP 2  
K792 XJBN-00397 RING-BACK UP 2  
808 XJBN-00396 NUT-HEX 4  
824 XJBN-00395 RING-SNAP 2  
885 XJBN-00394 PIN-VALVE PLATE 2  
886 XJBN-00365 PIN-SPRING 4  
901 XJBN-00393 BOLT-EYE 2  
953 XJBN-00105 SCREW-SET 2  
954 XJBN-00392 SCREW-SET 2  
981 XJBN-00156 NAME PLATE 1  
983 XJBN-00341 PIN 2  
*-2 @ FUEL INJECTION PIPE & NOZZLE
SEE 4020,REAR		 1  
*-2 @ FUEL INJECTION PIPE & NOZZLE
SEE 4020,FRONT		 1  
*-3 @ FUEL INJECTION PIPE & NOZZLE
SEE 4030		 1  
S XJBN-00437 PISTON SUB ASSY
SEE ILLUST		 1  
S XJBN-00798 CYLINDER SUB ASSY-RH
SEE ILLUST		 1  
S XJBN-00799 CYLINDER SUB ASSY-LH
SEE ILLUST		 1  
S XJBN-00800 SWASH PLATE SUB ASSY
SEE ILLUST		 1  
S XJBN-00801 TILTING PIN SUB ASSY
SEE ILLUST		 1  
K XJBN-01106 SEAL KIT-PUMP UNIT
SEE ILLUST		 1  


Model
Nominal
displacement
(ml/r)		 Pressure(MPa)
Speed(r/min)
Volumetric
efficiency
(≥%)		 L1 L A d D
Weight
(kg)

Rated
Max
Min
Rated
Max

Intet
Outlet
CBN-F520-BF** 20 20 25 600 2500 3000 92 66.5 134 48 65 25 20 5.1
CBN-F525-BF** 25 68.5 138 5.3
CBN-F532-BF** 32 93 69 139 30 5.6
CBN-F540-BF** 40 72 145 51 76 35 5.9
CBN-F550-BF** 50 76 153 25 6.3
CBN-F563-BF** 63 81.5 164 6.8


Model
Nominal
displacement(ml/r)

Fore pump/
hind pump		 Pressure(MPa) Speed(r/min)
Volumetric
efficiency(≥%)

Fore pump/
hind pump		 L1 L2 L
Weight
(kg)

Rated
Max
Min
Rated
Max
CBHY-G36/F3.5-ATφ* 36/3.5 25/20 28/25 800 2500 3000 92/85 123 123 205 6.8
CBHY-G36/F4.5-ATφ* 36/4.5 92/90 208 7.0
CBHY-G32/F3.5-ATφ* 32/3.5 92/85 118 118 200 6.5
CBHY-G32/F4.5-ATφ* 32/4.5 92/90 203 6.7
CBHY-G30/F3.5-ATφ* 30/3.5 92/85 116 116 198 6.1
CBHY-G30/F4.5-ATφ* 30/4.5 92/90 201 6.4
CBHY-G28/F3.5-ATφ* 28/3.5 92/85 114 114 196 6.1
CBHY-G28/F4.5-ATφ* 28/4.5 92/90 199 6.2
CBHY-G25/F3.5-ATφ* 25/3.5 92/85 110 110 192 5.8
CBHY-G25/F4.5-ATφ* 25/4.5 92/90 195 5.9


Belparts Excavator Main Pump R160LC-7 R180LC-7 Hydraulic Pump 31N5-10010 31N5-10011 31N5-10030 For Hyundai

Belparts Excavator Main Pump R160LC-7 R180LC-7 Hydraulic Pump 31N5-10010 31N5-10011 31N5-10030 For HyundaiBelparts Excavator Main Pump R160LC-7 R180LC-7 Hydraulic Pump 31N5-10010 31N5-10011 31N5-10030 For HyundaiBelparts Excavator Main Pump R160LC-7 R180LC-7 Hydraulic Pump 31N5-10010 31N5-10011 31N5-10030 For HyundaiBelparts Excavator Main Pump R160LC-7 R180LC-7 Hydraulic Pump 31N5-10010 31N5-10011 31N5-10030 For Hyundai
