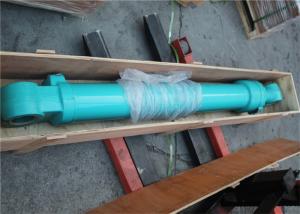

Bucket Cylinder Assy SK200-8 SK210D-8 SK210LC-8 SK210DLC-8 YN01V00175F2 YN01V00153F2 Excavator Hydrauic Spare Parts
Description
| Name | Kobelco Crawler Excavator Bucket Cylinder Assy |
| Production Standard | OEM |
| Model | SK200-8 SK210D-8 SK210LC-8 SK210DLC-8 |
| Part Number | YN01V00175F2 YN01V00153F2 |
| Color | Blue |
| Packing | Wooden Box |
| Package | As Required |
| After-sales service | Negotiable |
| Condition | 100% New |
| Stock Condition | In Stock |
| egory Group | Hydraulic Spare Parts |
| Usage | Mining &Construction &Road &Agricuture &Earth moving |
| Related Products | 1.boom cylinder 2.boom cylinder seal kit 3.arm cylinder 4.arm cylinder seal kit 5.bucket cylinder seal kit …… |
Pos. | Part No | Qty | Parts name | Comments |
| . . | YN01V00175F1 | [1] | CYLINDER,Double Acting, 95mm Rod, 1558mm Stroke | KOB Assy, Arm Superseded by part number: YN01V00175F3 |
| . . | YN01V00175F1R | [1] | REMAN-HYD CYLINDER | KOB 200-8, SK210D-8, Both S/N YN11-45001 -, SK210DLC-8, SK210LC-8, Both S/N YQ11-06001 - |
| . . | YN01V00175F1C | [1] | CORE-HYD CYLINDER | KOB Return Number |
| . . | YN01V00175F2 | [1] | CYLINDER | KOB Assy, Arm |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CON Tube, Cylinder (For F1 ONLY) |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CON Rod, Piston (For F1 ONLY) |
| . . | YN01V00105S003 | [1] | CYLINDER HEAD | KOB |
| 4. | 2438U1018S4 | [1] | BUSHING | KOB |
| 5. | 2438U776S5 | [1] | SNAP RING | KOB Retaining |
| 6. | YN01V00175S006 | [1] | RING | KOB Buffer |
| 7. | YN01V00175S007 | [1] | RING | KOB U |
| 8. | YN01V00105S008 | [1] | BACK-UP RING | KOB |
| 9. | 2438U776S9 | [1] | RING | KOB Wiper |
| 10. | ZD12G13000 | [1] | O-RING,129.40mm ID x 135.60mm OD x 3.10mm | KOB |
| 11. | LQ01V00001S011 | [1] | RING | KOB Back Up |
| 12. | ZS23C18080 | [12] | CAPSCREW,Hex Socket Head, M18 x 80mm | KOB SCREW Cap |
| 13. | YN01V00175S013 | [1] | BEARING | KOB Cushion |
| 14. | YN01V00175S014 | [1] | SEAL | KOB Cushion |
| 15. | YN01V00175S015 | [1] | PISTON | KOB |
| 16. | LQ01V00001S016 | [1] | RING | KOB Seal |
| 17. | LQ01V00001S017 | [2] | BACK-UP RING | KOB |
| 18. | YN01V00175S018 | [2] | RING | KOB Slide |
| 19. | LQ01V00001S019 | [2] | RING | KOB Slide |
| 20. | 2438U953S21 | [1] | SET SCREW | KOB Set |
| 21. | 2436R624S6 | [1] | BALL | KOB |
| 22. | YN01V00175S022 | [1] | BEARING | KOB Cushion |
| 23. | LQ01V00007S025 | [1] | SEAL | KOB Cushion |
| 24. | 2438U1104S25 | [2] | STOP | KOB Stopper |
| 25. | 2438U1104S26 | [1] | RING | KOB Retaining |
| 26. | YN01V01108P1 | [4] | BUSHING,85mm ID x 95mm OD x 54.5mm L | SM Bushing (For F1 ONLY) |
| 27. | 2438U1102S26 | [4] | SEAL | KOB Seal, Dust |
| 28. | NSS | [1] | NOT SOLD SEPARAT | CON Tube, Cylinder (For F2 ONLY) |
| 29. | NSS | [1] | NOT SOLD SEPARAT | CON Rod, Piston (For F2 ONLY) |
| 30. | 2438U1104S28 | [2] | BUSHING | KOB (For F2 ONLY) |
| . . | YN01V00175R100 | [1] | SEAL | SM Repair Rod Side |
| . . | YN01V00175R200 | [1] | SEAL | SM Repair Piston Side |
| . . | YN01V00175R300 | [1] | SEAL | SM Repair All (Rod + Piston) |
| . . | YN01V00175R400 | [1] | SEAL | SM Repair Consists Of Ref. 1x1, 26x2, 27x2 (For F1 ONLY) |
